Key Benefits

• Durable & Long-Lasting Prints
  Engineered to produce vibrant prints that resist fading over time.

• Versatile Material Compatibility
  Supports a wide range of substrates for all kinds of projects.

• User-Friendly Design
  Intuitive controls and semi-automatic features make operation straightforward for any skill level.

• Powerful Heat Source
  Robust heating elements ensure consistent temperature and pressure for optimal transfer results.

• Built-In Safety
  Comes standard with industry-recognized safety mechanisms for worry-free operation.

Technical Specifications

• Power Requirements: 110V, 2kW, 16A

• Temperature Range: Up to 399°F (204°C) for high-quality heat transfer

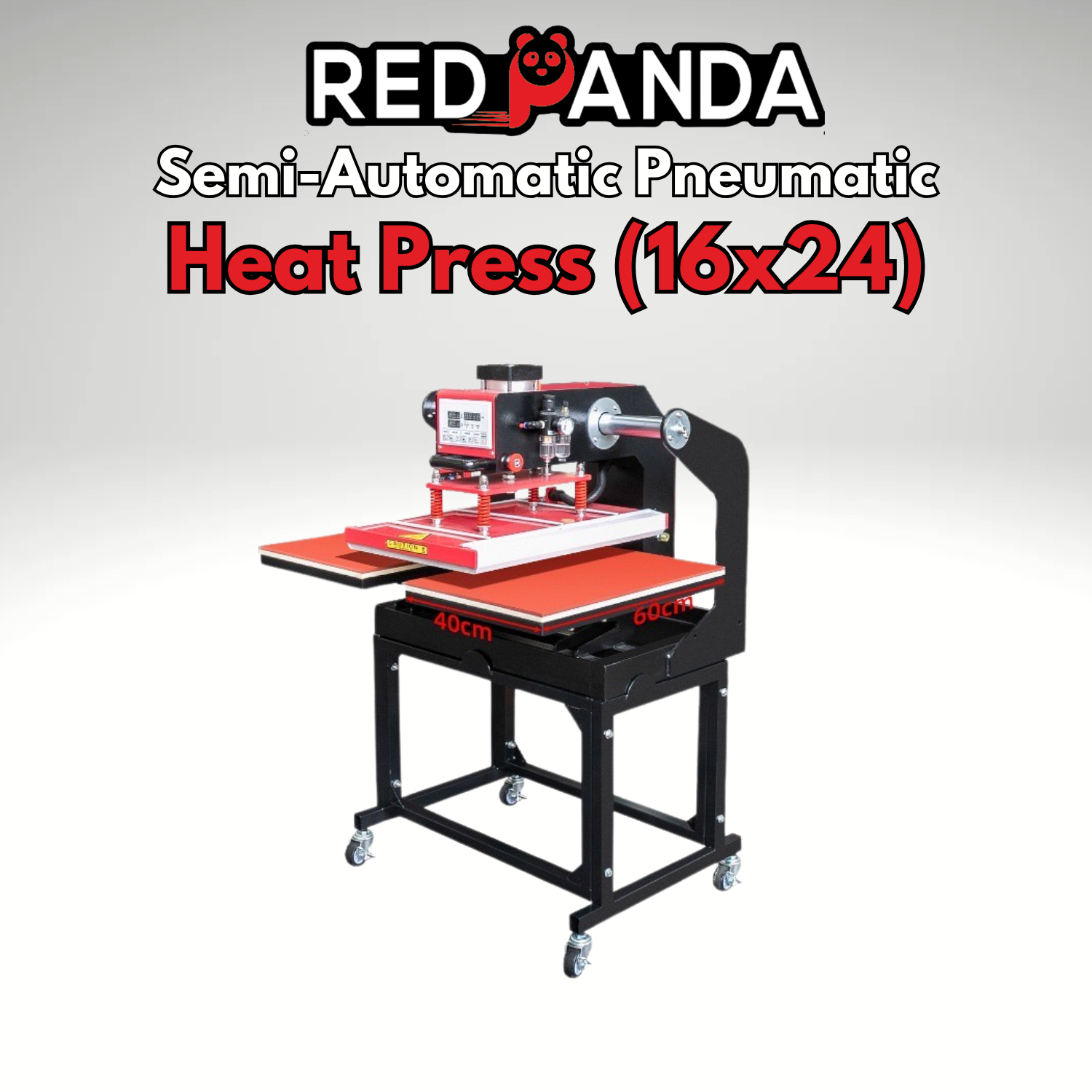

• Press Board Dimensions: 16 × 24 inches

• Height (Ground to Board): ~32.5 inches

• Machine Weight: ~463 lbs (210 kg)

• Shipping Weight: ~529 lbs (240 kg)

• Box Dimensions: ~39" × 34" × 56"

• Adjustable Pressure Range: 0–1102 lbs (recommended 200–500 kg)

• Enhanced Pressure Sensitivity: Boosted by a specialized Pressure Pneumatic Cylinder Device

• Uniform Heat Distribution: A thick heating plate maintains stable, even temperatures across the entire press board.

• Hydraulic Oil Requirement: Uses AW-46 hydraulic oil (3 gallons not included)

Perfect for Professionals & Beginners Alike

Whether you’re setting up a new business or expanding an existing print shop, this heat press strikes the ideal balance between precision and accessibility—helping you consistently produce eye-catching, professional-quality transfers.

Warranty & Support

1-Year Limited Warranty – Heat Press Coverage

• Duration: 1 year from the purchase date

• Coverage: Parts, labor, and service under normal operation, free of charge

• Exclusions: Normal wear-and-tear items (heat platens, pressure pads) are not covered

Extended Coverage for Greater Houston Area

• On-Site Service: If you’re within Greater Houston, all warranty-covered service and repairs are offered on-site at no additional cost.

Service Conditions for Locations Outside Houston

• For customers outside Houston who require on-site service:

  • Customer Responsibility: Technician travel and lodging expenses

  • Remote Support: Video-based troubleshooting and repair guidance provided for more distant locations

Additional Warranty Options

• 1-Year Total Coverage – Included Free

Support & Services

• Lifetime Technical Support

  • Access troubleshooting and usage assistance for the life of your heat press

  • (Replacement parts are only covered within the warranty period)

• Remote Repair & Guidance

  • Get video-based support for part replacements and repairs during your warranty term

Exclusions

• Shipping Damage

  • Damage during shipment isn’t covered (please ensure shipping insurance). Report any issues immediately.

• Consumables

  • Pressure pads, heat platens, and similar wear parts are not covered under warranty.

Important: This warranty covers part replacements and technical support only. It does not include returns or exchanges unless specifically stated by South Mid Supply.

Ready to Boost Your Production?

For questions, orders, or additional info, reach out to our South Mid Supply support team. We’re here to help you get the most from your semi-automatic pneumatic heat press!
